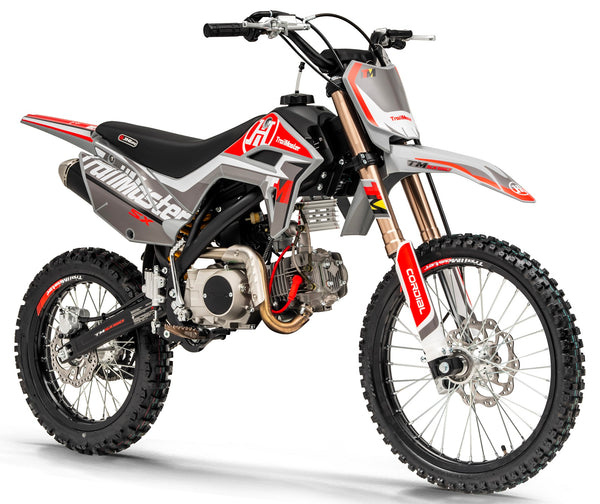

TrailMaster SX150 Pro Series Dirt Bike, Electric Start, 4-Speed Manual, Dual Disc Brakes, (19/16) Wheels – Red

The TrailMaster SX150 Pro Series Dirt Bike, a collaboration between TrailMaster and JHL Offroad, boasts an advanced Zhongshen 140cc 4-stroke engine that delivers 6.8 horsepower with both a kick start and an electric start option. With a slim weight of 189lbs and 19/16 wheels, this mid-size dirt bike offers high performance and reliability. Available in red, blue, and green, the SX150 features a 4-speed manual transmission and front and rear disc brakes. Its seat height of 32.7″ and inverted front shock enhance the rider’s experience.
The TrailMaster JHL Pro-Series line boasts standard premium items such as both electric and kick start options, a 140cc oil cooling engine for powerful performance, an after-market Nibbi PE22 performance carburetor for optimal function, an innovative frame design for a smoother ride, a high-performance inverted front shock absorber, and a 33″ seat perfect for groups of wide riders. Enjoy a wide and non-slip seat for comfortable riding, a nitrogen air gas rear shock absorber with aluminum linkage, a performance stainless steel muffler, an alloy handlebar, upper and lower triple clamps, foldable handle levers, reinforced alloy rims and hubs, 19″ front and 16″ rear Yuanxin Tires, and superior quality front and rear disc brakes.
Key Features
Electric and kick startPowerful 140cc oil-cooled engineNibbi PE22 performance carburetor for ultimate performanceNewly innovated frame design for smoother ridingHigh performance inverted front shock absorber33” seat high perfect for wide groups of ridersWide and high-quality non-slip seat for comfortable ridingNitrogen air gas rear shock absorber w/aluminum linkagePerformance stainless steel mufflerAlloy handlebarAlloy upper and lower triple clampsAlloy foldable handle leversHigh quality reinforced alloy rims and hubsLarge 19” front and 16” rear Yuanxin TiresSuperior quality front and rear disc brakes
Specifications
Engine Type
140cc, Single cylinder, four stroke, air-cooling /Oil-cooled
Displacement
140 ml
Max Power
6.8/7500 (1±1.5%)
Max Torque
9.7/5500（1±1.5%）
Compression Ratio
8.8:1
Shift Type
Four gear, non-circulate gear
Start Type
Electric / Kick Start
Ignition
CDI
Min. Fuel Consumption:
≤367g/kw.h
Minimum turning radius:
1900 mm
Lubricant Type #：
SF15W/40
Transmission:
Chain Drive
Overall Size (L x W x H)
71.31 x 29.16 x 43.34 Inch / 1810×740×1100 mm /
Wheelbase
49.25  Inch / 1250 mm
Seat Height
32.70  Inch / 830 mm
Ground Clearance
13.26  Inch / 340mm
Fuel Capacity
1.56 Gal. / 6 L
Wheels
Alloy 19/ 16 Rims, Alloy Hubs
Tires
YUANXING  FT: 70/100-19 – RR: 90/100-16
Frame
High-quality Steel Frame
Front Fork
Inverted, non-Adjustable
Rear Shock
Alloy U&D connector, Non-Adjustable
Upper and Lower Connecting Board
Alloy
Handlebars
Alloy and Foldable
Front Brake
Disc
Rear Brake
Disc
Exhaust
Stainless Steel
Packing Size
63.82*17.92*33.49 Inch/ 1620*455*850 mm
N.W/LBS
189.2 LBS / 86 KGS
G.W/LBS
237.6 LBS / 108 KGS
