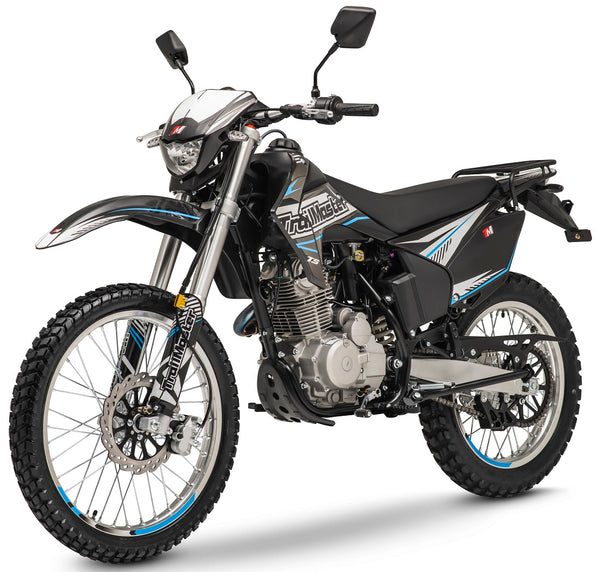

TrailMaster T5 Dual Sport Dirt Bike, 5-Speed Manual, 223cc Engine, Dual Disc Brakes, Electric Start with Kick backup, (21/18) Wheels – Blue

From the perspective of a product expert, Trailmaster proudly presents the all-new T5. This remarkable addition to Trailmaster’s dirt bike lineup boasts upgraded performance and a sleek new frame design. Featuring adjustable inverted front forks, electric and kick start options, and a lightweight all steel twin-spar style frame, this bike is ready for any adventure. The outstanding top speed of up to 60 mph is thanks to the Zongshen engine and 5-speed manual transmission. The 21-inch front tire and 19-inch rear tire provide exceptional ground clearance, while the airbag-style shock in the rear suspension ensures a smooth ride. With lightweight aluminum rims for a superior power-to-weight ratio, the T5 outperforms its competitors.
This TrailMaster T5 Dual Sport Dirt Bike features a digital display for easy access to information, as well as an LED headlight for nighttime rides. It also includes blinkers, brake lights, side view mirrors, and a license plate holder, making it compliant with street legal standards in a variety of states.
Specifications
Engine System
Engine Type
Zongshen CB250D-G,Single cylinder, four-stroke
Displacement (ML)
223cc
Max Power(Kw/r/min）
12.00/7000（1±1.5%）
Max Torque(N.m/r/min）
17.50/5500（1±1.5%）
Max. Load Capacity (kg)
150
Max. Speed
57 M/H
Compression Ratio
9.6：1
Shift Type
International five gears
Start Type
Electric / Kick Start
Ignition
CDI
Min. Fuel Consumption:
≤354(g/（kW·h)
Minimum turning radius:
2600mm
Lubricant Type：
SF 15W/40
Chain:
520 CHOCHO
Transmission:
Chain Drive
Size Data
Overall Size (L x W x H)
2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch
Wheel Base
1400 mm / 55.16 Inch
Seat Height
890 mm / 35.07 Inch
Ground Clearance
290 mm / 11.43 Inch
Fuel Capacity
2 Gal/9L
Rims
Aluminium
Hubs
Aluminium
Tires
YUANXING FT: 80/100-21 – RR: 110/100-18
Frame/Suspension/Brakes
Frame
High quality Steel Frame
Front Fork
Inverted front shock absorber, 48/51-800mm
Rear Shock
Built-in airbag rear shock absorber
Upper and Lower Connecting Board
Aluminium alloy
Handle bar
Aluminium alloy Reducing Handle Bar
Front Brake
Disc 252mm
Rear Brake
Disc 220mm
Exhaust
Stainless Steel
Packing and Loading
Packing Size
70.92*18.12*34.78 Inch/ 1800*460*870 mm
N.W/LBS
118.00 KGS / 259.6 LBS
G.W/LBS
140.00 KGS / 308.00 LBS
