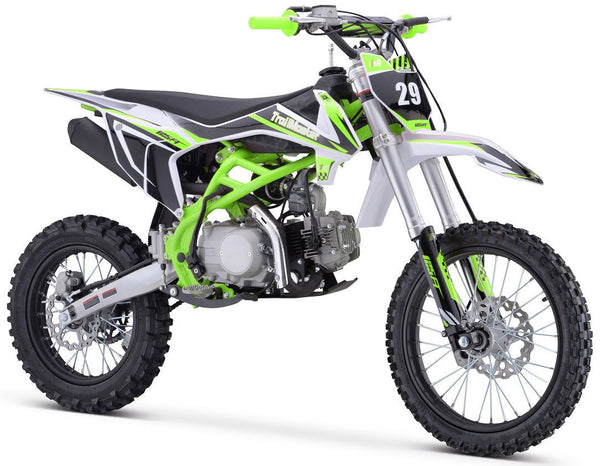

TrailMaster TM29 125cc Dirt Bike, Large Frame, 4-Speed Manual, with Electric Start (17/14), Ages 12 and up – Green

 LARGER FRAME ** Big Wheel Size 17/14, Ages 12 and up **
The TM 29‐125 is identical to the TM27 except it has both a kick start and “ELECTRIC START”, High-performance 125cc 8.3hp GAS engine with a top speed of around 55 MPH and a seat height of 33.5” ** 4-speed manual transmission with front and rear disc brakes, inverted front shock, and a larger (70” Long) heavy duty frame than the TM24!
The bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 125cc engine can propel the motorcycle to speeds of 55 miles per hour!
Specifications
Engine System
Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
Displacement 124 ml
Max Power 8.3hp
Max Torque 6.64 lb. Ft
Compression Ratio 9.6:1
Shift Type N‐1‐2‐3‐4, Four‐Gear, Manual Shift
Start Type: Electric & Kick Start
Ignition CDI
Min. Fuel Consumption: ≤367g/kw.h
Max Range: ≤10.5 mile
Engine Oil：5W-30
Transmission Chain Drive: #428, 14/41T
Size Data
Overall Size: (L x W x H): 71.3″ X 28.9″ X 43.3″
Wheelbase: 49.8″
Seat Height: 33.5″
Ground Clearance: 13″
Fuel Capacity: 1.2 Gal/4.5 L
Tires: FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
Wheels: Steel 1.6 x 17″ / 1.85 x 14″ Rims, Cast Hubs
Frame/Suspension/Brake System
Frame: Twin Girders Steel Tube
Front Fork: Inverted 45*48‐735mm Forks, Non‐Adjustable
Rear Shock: 10*￠11*310mm, Spring Per‐load
Swing‐Arm: Steel Tube 14inch
Handlebar: Steel Crossbar, L=720mm; Dia=22mm
Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
Exhaust: Steel Pipe with catalyst converter (EPA Standard)
Crate Size: 62.6″ x 14.8″ x 29.9”
N.W: 143.3 LBS
G.W: 172 LBS
