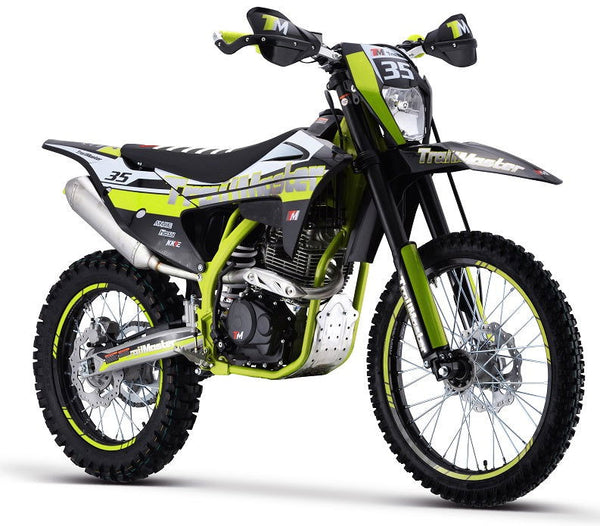

TrailMaster TM35 250cc Dirt Bike, 5-Speed Manual, Dual Disc Brakes, (21/18) Wheels – Green

This model of TrailMaster’s TM35 dirt bike boasts impressive specifications, including a powerful 249cc 4-stroke engine and a top speed of approximately 55 MPH. It is equipped with both a kick start and a new “ELECTRIC START” feature, making it easy to get going. With a seat height of 36.2″ and various color options available, this full size dirt bike is sure to meet the needs of any rider. Other notable features include a 5-speed manual transmission, front and rear disc brakes, an inverted front shock, and a lightweight steel tube frame.
The TrailMaster TM35 250cc Dirt Bike features a 21/18 wheel combination and a race suspension system for optimal handling on various terrains. Its Electronic Digital CDI ignition allows for easy starting and power consistency in all gears, while the lightweight 249cc engine can reach speeds of up to 55 miles per hour. Experience natural and effortless control on this bike, designed with full motocross ergonomics.
Specifications
Engine System
Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling
Displacement 249.9 ml
Max Power 18.7 hp
Max Torque 18/6500 N.m/r/min
Compression Ratio 9.25:1
Shift Type Manual Wet Multi-Plate, 1- N-2-3-4-5, 5-Gears
Bore and Stroke72 x 61.4 mm
Fuel Consumption≤354(g/Kw.h)
Start Type Electric & Kick Start
Carburetor PE28 (EPA)
Ignition Digital CDI
Engine Oil 10W/40
Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket
Size Data
Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
Rear Shock Φ12*450mm Spring Preload None-Adjustable Shock
Front Wheel Aluminum Rim-WT Printing , DCA Hub, FT: 1.6 x 21
Rear Wheel Aluminum Rim-WT Printing , DCA Hub, RR: 2.15 x 18
Front Tires 80/100-21
Rear Tires 110/100-18
Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc
Seat Ribbed TrailMaster Seat
Headlight LED
Fairings GS style New Fairings
Handguard Aluminum Bracket Version
Frame/Suspension/Brake System
Frame Lightweight ,Steel Hexagon Tube
Swing-Arm Tube High Strength Steel Swingarm; L=560mm
Handlebar Tapered Aluminum #6061
Overall Size 80.3″x32.1″x48.4″
Packing Size 67.8″x17.7″x34.3″
Wheelbase 53 inch
Seat Height 36.2 inch
Ground Clearance 12.2 inch
Fuel Capacity 1.72G
N.W 251 lbs G.W 291 lbs
